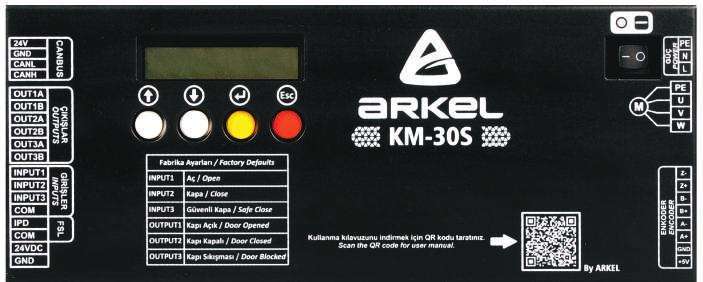

KM-30S Door Control Board

Door Control Board for 220 VAC Synchronous Motor Telescopic Lift Doors

Reliability of KM-30S:

KM-30S contains power-o feature that complies with EN 81-20 standard to provide the highest safety level for passengers. When the door detects an obstacle, it stops closing and opens. When it is required to close the door again, it slowly switches from the position where it has detected an obstacle.

Technology of KM-30S:

KM-30S is a door controller that consists of the combination of the sensor and sensor-free vector control. Thanks to the 32-bit processor, it processes motor data without any errors and ensures perfect control. Our internal SMD and THT stringing operations are carried out by using the state-of-the-art machines. All functions are tested on our own-designed test benches. No products are activated without being approved from the test bench. In this way, we always provide our clients with excellent products.

Intelligence of KM-30S:

KM-30S has intelligent motor driving technique. The motor is subject to a recognition process. For this purpose, data such as user, current of the motor, number of poles, gear ratio etc. is entered on the menu. The loaded position and speed data is also transmitted back through an encoder. The errors are calculated and transmitted back to the motor. In this way, the motor in KM-30S does not suer loss of power.

Comfort of KM-30S:

KM-30S ensures full control of the motor as compared to the standard drivers. It ensures softened passages between the acceleration and deceleration curves. It enables the door to open and close fast but without any vibrations. It could re-open with audible warning in case of congestion. It also prevents the passengers from souring any damage by passing through the congestion area slowly.

Installation of KM-30S:

KM-30S was designed to ensure maximum ergonomics and ease of installation. It could be installed on the upper frame of the elevator door, next to the door motor or behind the door strap. Its sizes are 310 x 112,6 x 30 mm. KM-30S is fully compatible with Arkel “KM-30S Motor”.
