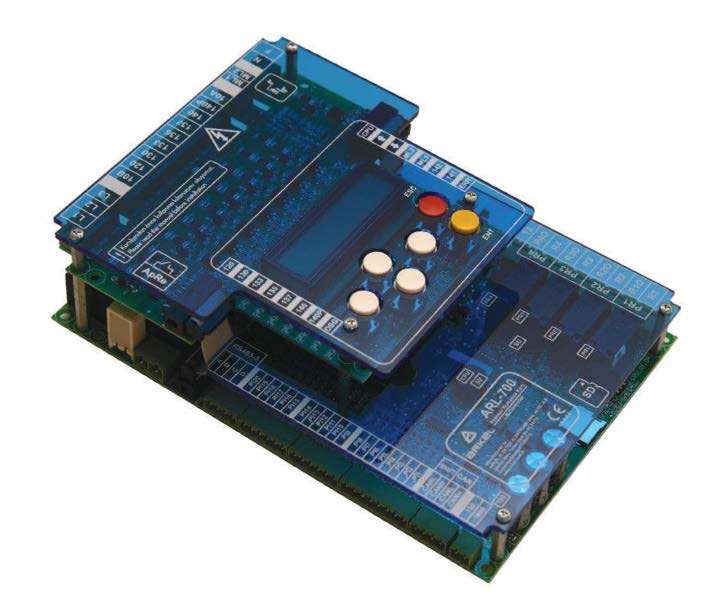

ARL-700 Lift Control Board
EN 81-20 compatible control board for roped and hydraulic lifts.
Features:
- Compatible with EN81-20 hydraulic and traction systems
- Updating all equipment connected by SD card
- Serial communication with ARKEL ADrive
- Door pre-opening and level re-leveling with open door through the internal door bridging relays
- Equipment that detects the short circuit of door contacts
- Operation with all ARCODE peripheral units
- Emergency rescue function
- Group operation up to 2,5 m/s speed and 8 group lifts
- Possibility of serial installation up to 64 floors (CANbus)
- Programmable 4 relays, 4 transistor outputs
- Parallel and serial lift shaft communication through additional card
- Two door enclosure support
- Parallel and serial lift car communication through additional card
- Shaft learning with Motor Encoder or magnet
- Possibility of access through ARCODE programming hand terminal (AREM)
- Supporting other drives and hydraulic solutions through HSR card
- Internal phase sequence and motor protection circuit
