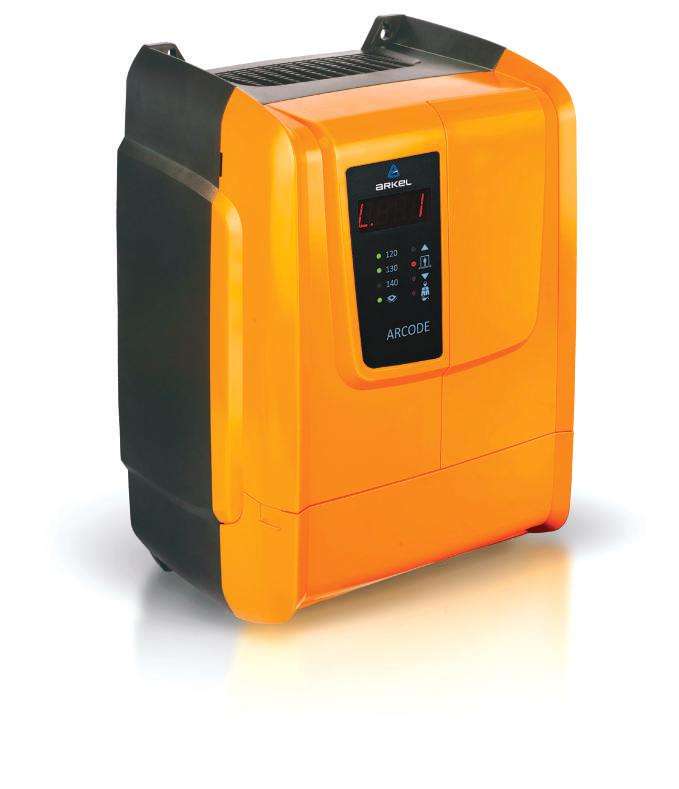

Arcode Lift Control

Description:

ARCODE is an innovative, breakthrough product in lift industry. ARCODE is an integrated lift control unit that combines VVVF drive, control units and evacuation system.

With “Direct Landing” feature:

  • Shortens travel time with removal of the drifting distance by dynamic calculation of the travel curve.
  • Provides easy adjustment by automatic detection of the deceleration point.
  • Does not require any additional adjustments for short-floor or high-speed lift applications.

Why Arcode?

  • Excellent comfort thanks to direct landing
  • Shorter travel time compared to the standard VVVF systems
  • Energy-saving modes
  • Full synchronization
  • Compact design
  • Simple and fast installation
  • Easy updating

Models:

  1. Model: 4B14A
    • Nominal output current: 14 A
    • Size: 258 x 372 mm
  2. Model: 4B17A
    • Nominal output current: 17 A
    • Size: 258 x 372 m
  3. Model: 4B26A
    • Nominal output current: 26 A
    • Size: 258 x 372 mm
  4. Model: 4B35A
    • Nominal output current: 35 A
    • Size: 258 x 472 mm
  5. Model: 4B50A
    • Nominal output current: 14 A
    • Size: 258 x 472 mm
  6. Model: 4B75A
    • Nominal output current: 75 A
    • Size: 258 x 472 mm

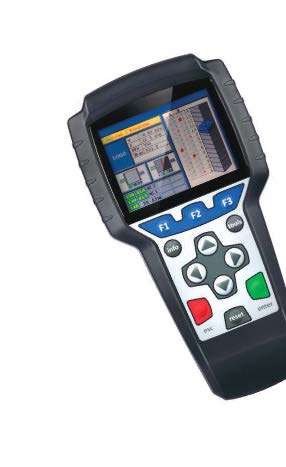

AREM Programming Tool for ARCODE:

Functions

  • Back-up and transfer of system parameters via SD Card
  • 3 Different accessibility levels for specific needs (guest, maintenance and installation)
  • Updating the software of all CANbus units without PC
  • Access to the system from any point on CANbus



Product Features

Motor Control Synchronous & Asynchronous Machine
Power Input (L1, L2, L3) AC 3 Ph., 320-420V, 50/60 Hz ; AC 3 Ph., 200-240V, 50/60 Hz
Models ARCODE 14, 17 , 26 , 35 , 50 , 75 A
Speed Up to 4 m/s
Group Operation Up to 8 lifts
Number of Floors Up to 64 floors
Communication Protocol CANbus
Encoder Options 5V TTL, 10-30V HTL, EnDat, SSI, SinCos, BISS
Safety Circuit Voltage 48 VAC – 230 VAC
